Customizable Sensored Outrunner Motor 42mm 35W For Solar Tracking And Power Tools

  • 1
  • 2

Brand Name : PM

Model Number : PM42Flat

Certification : REACH & CE

Place of Origin : China

MOQ : 20 Pieces

Price : USD$20 - $55 PER Piece

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000PCS per Month

Delivery Time : 15 working days

Packaging Details : L42*W27*H23cm, strong export carton box outside,Poly foam inside

Motor Type : Outrunner Brushless Motor

Rated Speed : 5000RPM or customized

Rated Output Power : 35W, 50W, 70W or customized

Rated Voltage : 24 V DC or customized

Applicaiton Field : Solar tracking & cleaning systems, HVAC systems, electric vehicles, hand-held power tools

Warranty : 3 Years

Contact Now

42mm Outrunner Brushless Motor External Rotor Motor 35W to 70W Customizable for Solar Tracking HVAC Power Tools

Product Tag: 42mm Brushless Outrunner Motor , 42mm Outrunner Brushless Motor , 42mm Outrunner BLDC Motor , 42mm BLDC Outrunner Motor , 42mm Outer Rotor Brushless Motor, 42mm Brushless Motor, 42mm Brushless Electric motor , 42mm BLDC Motor , 42mm Sensored Brushless Motor , 42mm Sensorless Brushless Motor , 42mm External Rotor Motor , 42mm Outer Rotor Motor,Outer Rotor Motor

  • PM42FLAT is 24V Outerunner Brushless Motor with 5000 RPM Speed and 0.1N.m Torque.
  • These motors can be customized and can combined with various types of gearboxes and drivers as per requirement.
  • It is 42 mm in diameter and have three different height. These Motors are available with sensors and without sensors.
  • Robust Ball bearings ensure excellent service life with ≥ 5000 hours.
  • Drivers are also available as an Add-On unit on special request.
  • These motors are available at different speeds and different voltages on special request.

Applications:

  • Solar tracking & cleaning systems, HVAC systems, electric vehicles, hand-held power tools

Upgrade your systems with our reliable and adaptable BLDC motor solution, perfect for a wide array of industrial and consumer applications.

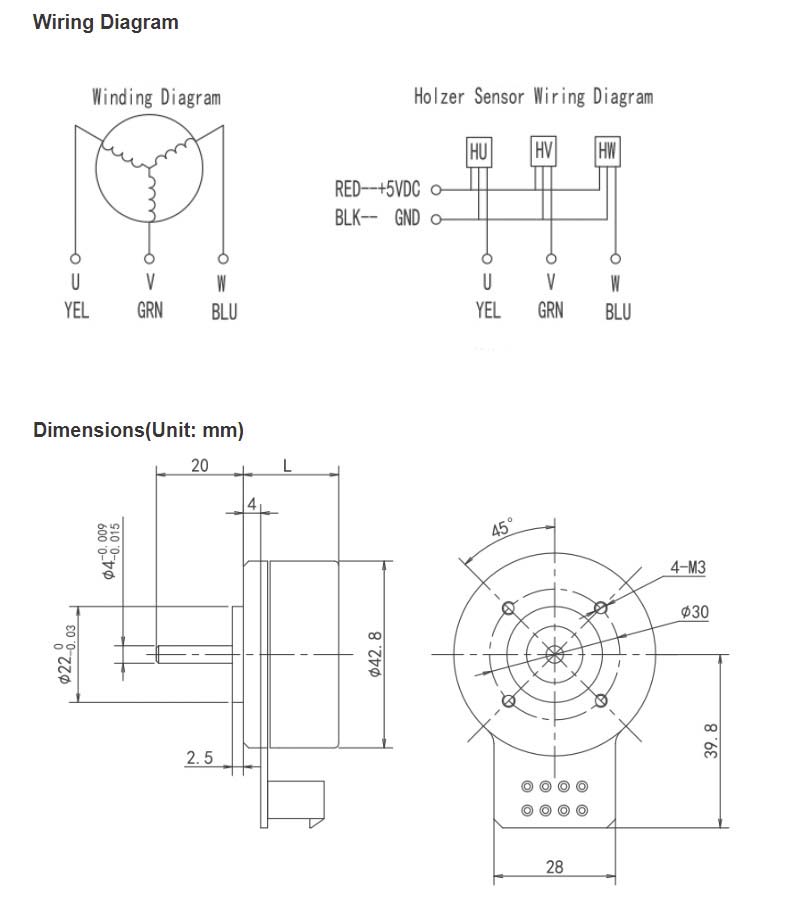

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.

Standard Data

Motor Model PM42FLAT243550 PM42FLAT245050 PM42FLAT247050
Number of Phase 3
Number of Poles 16
Rated Voltage(VDC) 24
Rated Speed(Rpm) 5000
Rated Torque(N.m) 0.06 0.1 0.13
Rated Power(W) 35 50 70
Rated Current(A) 2.2 3.2 4.4
Peak Current(A) 6.6 9.6 13.2
Peak Torque(N.M) 0.18 0.3 0.39
Rotor Inertia(kg.cm2) 0.13 0.23 0.33
Torque Constant(N.m/A) 0.0.3 0.03 0.0.3
Torque Constant(V/krpm) 2.8 2.8 2.8
Line-Line Resistance(Ω) 2.0 1.5 1.0
Line-Line Inductance(mH) 1.5 1.0 0.5
Length(mm) 21.3 26.3 31.3
Weight(kg) 0.12 0.18 0.24
